26cc on road NOW available
23cc on & off road NOW available
26cc on road NOW available
23cc on & off road NOW available


MLC Motorsport Lamberto Collari Worldwide distributor of ON ROAD BZM ENGINES is pleased to present a preview of the upcoming new 2011-2012.


The new BZM engines for 1/5 scale comes from the experience of the Mini Bike engine, where the BZM brand is constantly committed to be the leader.
BZM engineers for this 23 cc and 26 cc ON ROAD ENGINES have applied thelatest technology for the study design, knowledge in the choice of materials and special treatments to make a totallyunique product.

The main features are:

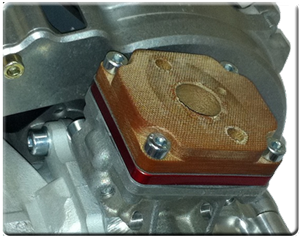

- displacement 23 or 26 cc on road with reed valve
- ports 4
- air cooling

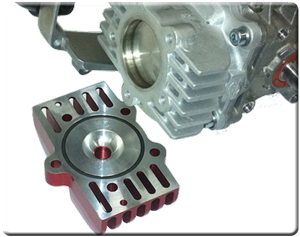

- sealing head, cylinder and crankcase with exclusive special O-ring
- carbon parts are present in the engine
- conveyor air in carbon material
- PRODUCED FOLLOWING INTERNATIONAL FEDERATION RULES

These are the first previews of this new racing engine that will change the generation of engines for the 1/5 scale cars.

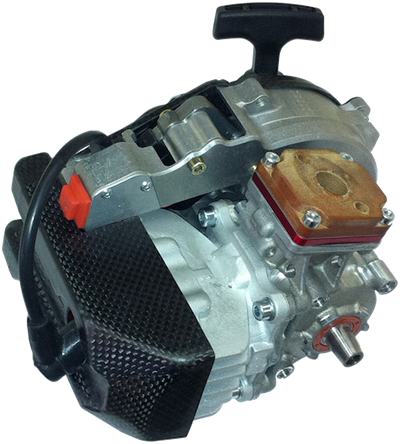

BZM Engine
Displacement 23cc 26cc
Cylinder diameter 32 mm / 1.26 inch  34 mm / 1.34 inch
Cooling head Separate from the cylinder Separate from the cylinder
Carburettor type WT603A/WT813A WT603A/WT813A
Ignition TCI  TCI
Spark plug NGK CMR7H NGK CMR7H
Start Manual Manual
% Recommended oil 4% synthetic 4% synthetic
Reccomended pipe Samba 7 Samba 7
Spare parts list ACCESSORIES & RECOVERY
BZM BZM

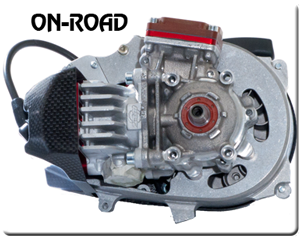

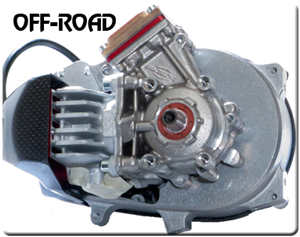

on-road off-road
Also in combination with the pipe Samba 7, steel or titanium
Also in combination with the pipe Samba 7, steel or titanium
